Okm Fusion Light

Fusion Light is an easy-to-use metal detector for beginners and treasure hunters looking for buried artifacts and hidden treasures in cavities such as graves, tunnels and underground chambers. The treasure detector is a model developed according to frequent customer requests that combines the popular features of the powerful Fusion Professional with the flexibility and usability of the Rover UC.

Entry detector with the 2 main operating modes: The function 3D Ground Scan allows treasure hunters to recognize gold treasures and underground anomalies and to visualize the measurement data directly on their smartphone via the Android app. With the operating mode Magnetic pots, Fusion Light is able to locate metals such as militaria and old ammunition, silver and gold coins, valuables and precious artifacts filled iron boxes.

Discover a new dimension of treasure hunt

Fusion Light, the compact treasure detector for beginners and treasure hunters with a small budget, convinces with easy handling and easy transport – perfect to quickly achieve first success in treasure hunt. The clear delivery has it in itself: Fusion Light, the lightweight under the OKM metal detectors and floor scanners, consists of a compact control unit with integrated sensors and is controlled via Android app. Magnetometers and 3D floor scan are essential for successful treasure hunters. The measurement results are graphically visualized using the Android app directly on the smartphone and can be further analyzed with the Visualizer 3D software on the Windows Notebook.

Detecting metal objects with magnetometer: With the function Magnetic pots, the magnetic field of the earth can be measured. Anomalies in the magnetic field point to potential findings. In this way, buried artefacts such as treasure chests, old ammunition and other iron-containing objects can be detected for a long time. Experienced treasure hunters already use the magnetometer before the 3D floor scan to free the measuring field from smaller surface metal objects.

Detecting anomalies with 3D ground scan: The operating mode 3D Ground Scan supports treasure hunters, militaria searchers and historians in tracking underground cavities and artifacts. The measurement data of potential finds and discoveries are displayed diagrammatically via the OKM Fusion Light App directly on the display of the Android smartphone (or tablet) and stored for further analyses. A more accurate 3D image is obtained when you transfer the data to the PC and analyze it with the Visualizer 3D software.

3D display of measurement data with OKM Software Visualizer 3D Studio: The Visualizer 3D Studio software lets you display the measurement data of the 3D floor scan in a detailed 3D graphics on the PC. After successful transfer of the stored scan data to the PC, treasure hunters can determine the position, size and depth of the treasures found even more precisely.

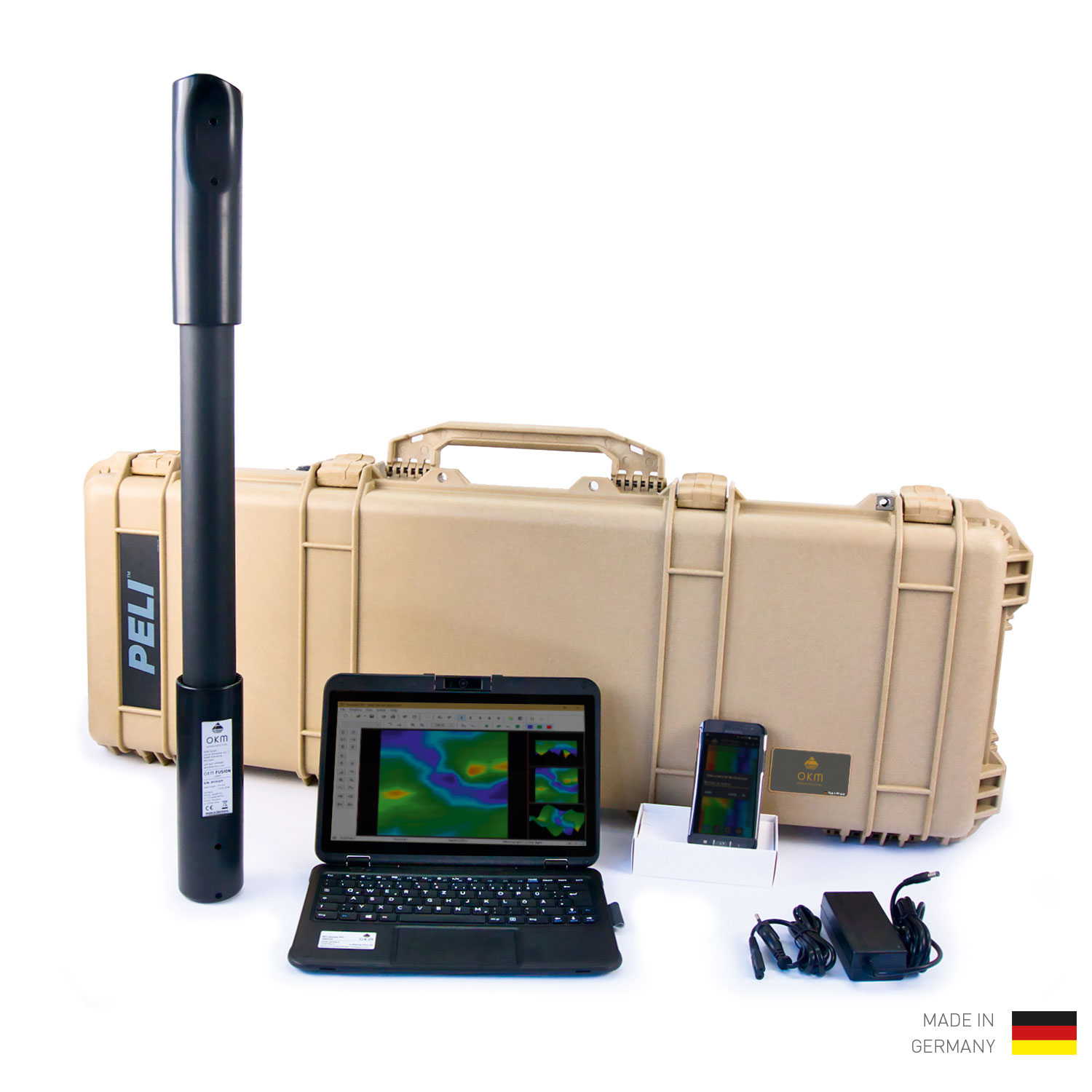

Scope of delivery

Technical details

Control unit

• Dimensions (H x W x D): 800 x 65 x 65 mm
• Weight: approx. 700 g
• Input voltage (max.): 19 V DC, 3.16 A
• Lithium-ion battery: 2600 mAh
• Operating time: approx. 12 hours
• Charging time: approx. 3 hours
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / slave CPU: Cortex M0, 24 MHz
• Sample rate: 1024 values per second
• Measurement resolution: 16 bit
• Operating temperature: -10°C to 60°C
• Storage temperature: -20°C to 70°C
• Waterproof: No
• Humidity: 5% to 75%
• Protection type: IP40
• Sensor/coil technology: SCMI-15-D

Data transmission

• Technology: Bluetooth 5.1
• Frequency range: 2.402 – 2.480 GHz
• Maximum transmission rate: 1 Mbps
• Maximum transmission: +8 dBm
• Maximum range: approx. 10 m

Minimum requirements for Computer

• Interface: USB 2.0
• Free space: at least 250 MB
• Memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphic card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

Technical data are averages. During continuous operation, slight deviations are quite possible.
