Okm Evolution Ntx

3D Metal detector for Treasure Hunters and Gold Seekers

The Evolution is a combination of 3D floor scanner and metal detector and impresses with simple, multilingual usability. It can be used by treasure hunters, gold seekers, probe walkers and archaeologists looking for buried objects like lost treasures, ancient artifacts and other historical objects.

• Lost valuables (rings, coins, jewelry, wedding rings)
• Buried treasures and artefacts
• Ancient boxes, chests, graves and treasuries

In contrast to conventional metal detectors, Evolution creates graphic 3D images of underground treasures and local anomalies. This allows you to determine the size and depth of the potential finds before the excavation.

3D metal detector for treasure and gold detectors

The successor of Evolution is much more compact and includes optimized components such as rechargeable, durable batteries, improved operability and more powerful sensor and coil technology.

Simplified operation

Based on our experience and suggestions from our users, the new Evolution NTX model has been improved and optimized in various aspects:

• Durable and rechargeable batteries

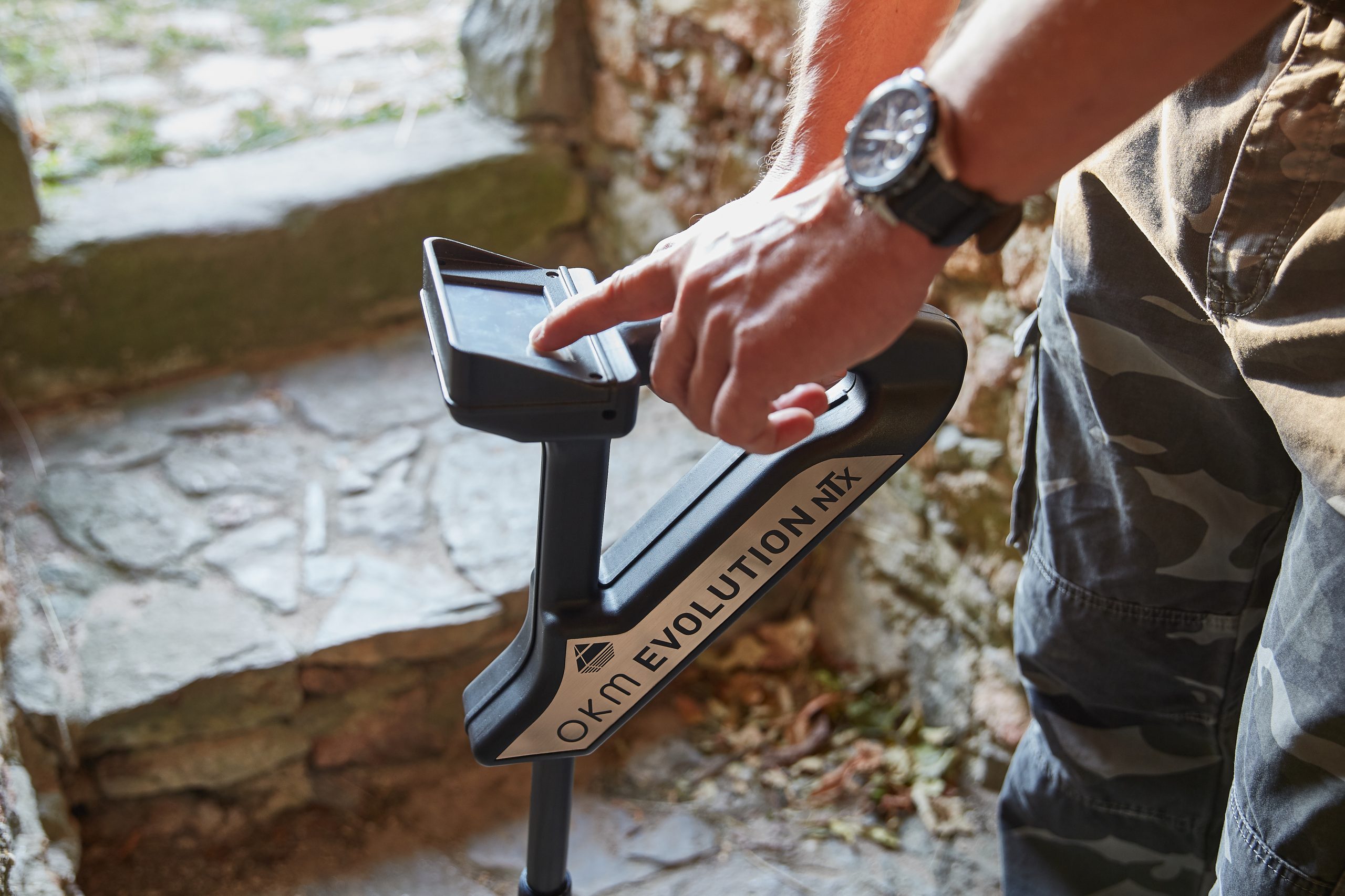

• High resolution touchscreen
• Integration of Bluetooth headphones
• Compact and robust design
• Improved sensor and coil technology

With all these features and improvements, the OKM Evolution NTX is a useful tool for all treasure hunters, archaeologists, gold seekers and historians.

VLF search coil

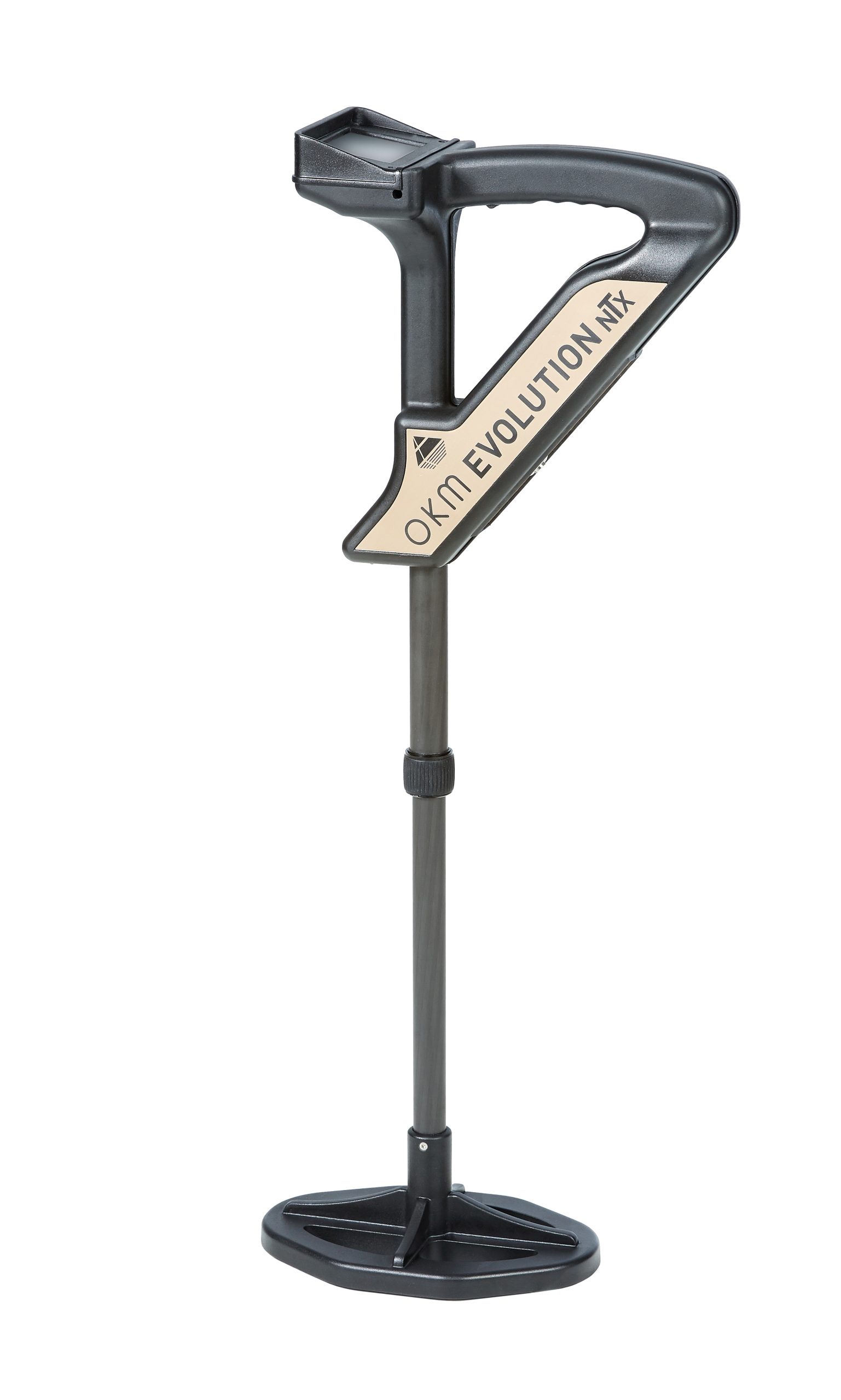

The combination of our sensor technology with a VLF search coil detects not only near-surface metals, but also deep buried artifacts and treasure objects. Evolution NTX with telescopic search coil: the length of the metal detector Evolution NTX can be adapted to the personal body size of the user.

Soil test and metal location

The 3D floor scanner Evolution NTX provides two operating modes for the location of underground objects and structures. The length of the detector can be adjusted individually to its own body size. Beginning in the main menu, select one of the two operating modes:

• Live sound: This mode of operation activates the VLF metal detector to find near-surface metallic objects such as coins, rings or jewelry. In addition to an acoustic output, a graphic representation of the signals on the screen is also displayed.
• 3D scan: This mode of operation is used to perform graphical 3D floor scans. All measured values are stored in the internal memory of the device. This information can be transmitted to the Visualizer 3D software and displayed as a 3D image. The detected underground objects and structures are also shown graphically.

3D representation with Visualizer 3D software

The metal detector and 3D floor scanner OKM Evolution NTX is used by treasure hunters, gold seekers, probe walkers and archaeologists looking for buried objects and hidden artifacts. With the 3D Scan function, you can create a 3D graphics from the background using the Visualizer 3D software and find buried coins, rings, jewelry and similar treasure objects and artifacts. Particularly metallic objects can be easily detected. Buried objects are displayed by different colors in a graphic 3D representation.

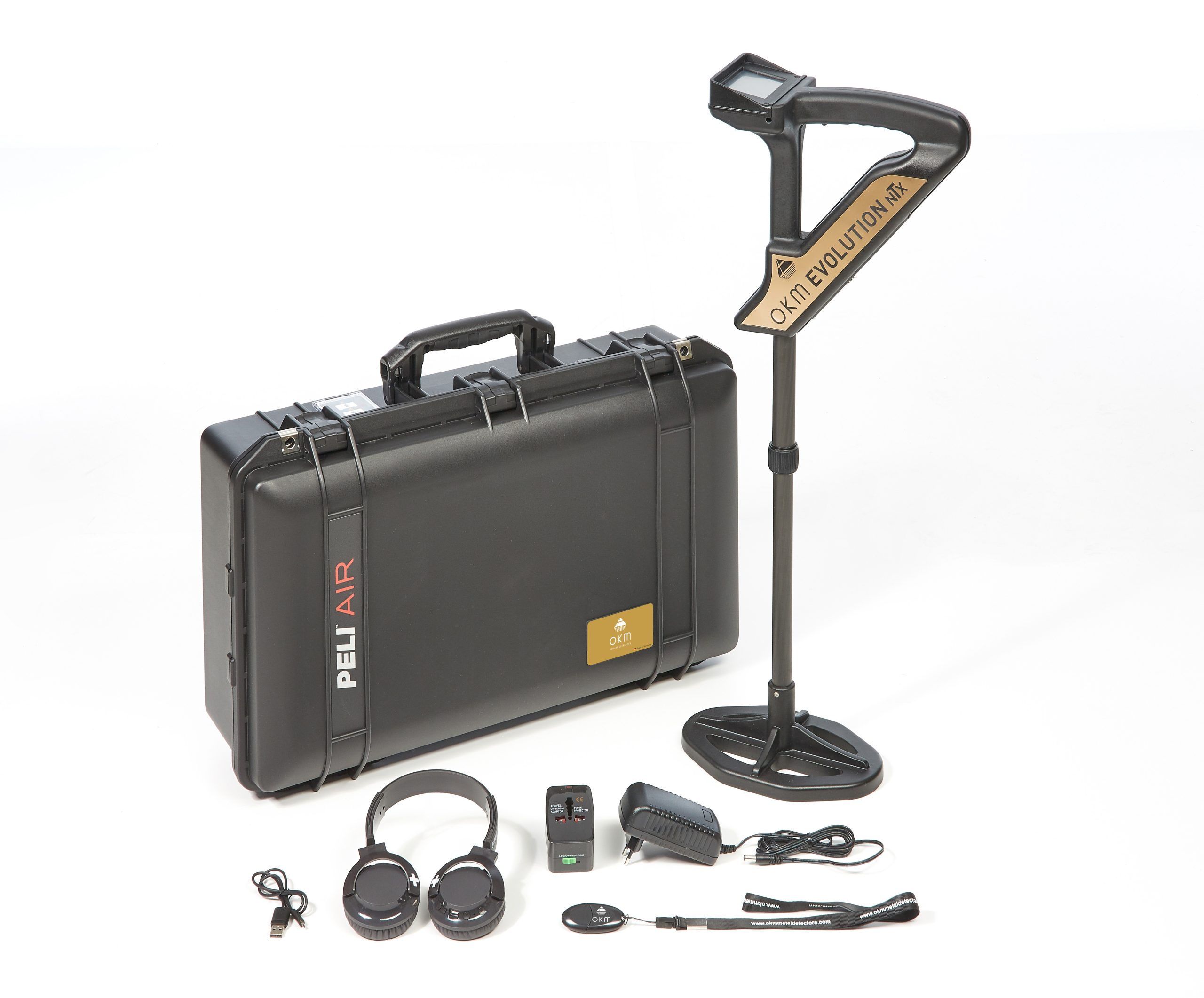

Scope of delivery

Technical details

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / slave CPU: Cortex M0, 24 MHz
• Display: 3.5 inch Resistive touch, 480 x 320 pixels
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data storage: 4 GB
• Sample rate: 1024 values per second
• Measurement resolution: 16 bit
• Operating temperature: -10°C to 60°C
• Storage temperature: -20°C to 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Humidity: 5% to 75%
• Sensor / coil technology: SCMI-15-D / VLF

Data transmission

• Technology: Bluetooth 5.1
• Frequency range: 2.402 – 2.480 GHz
• Maximum transmission rate: 1 Mbps
• Maximum transmission: +8 dBm
• Maximum range: approx. 10 m

Minimum requirements for Computer

• Interface: USB 2.0
• Free space: at least 250 MB
• Memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphic card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

Technical data are averages. During continuous operation, slight deviations are quite possible.
